斜齒輪蝸輪蝸桿減速機電機
網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > S系列減速機廠家

S37DRE71S4詳細信息

prevnext

S37DRE71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：輸出轉數211轉減速機電機_S37DRE71S4_S37DVE71S4_211轉一分鐘減速電機_每分鐘轉211轉齒輪減速箱馬達_211轉/分鐘減速器_211轉電機減速機

S37DRE71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
S37DRE71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
S37DRE71S486.360.25KW15.0rpm96N.m17kg3000N0.90
S37DRE71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
S37DRE71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
S37DRE71S463.330.25KW21.0rpm73N.m17kg3000N1.10
S37DRE71S455.930.25KW23.0rpm78N.m17kg3000N1.05
S37DRE71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
S37DRE71S443.680.25KW30.0rpm62N.m17kg3000N1.30
S37DRE71S437.660.25KW35.0rpm54N.m17kg3000N1.45
S37DRE71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
S37DRE71S430.680.25KW42.0rpm45N.m17kg3000N1.70
S37DRE71S428.760.25KW45.0rpm42N.m17kg3000N1.80
S37DRE71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
S37DRE71S422.500.25KW58.0rpm33N.m17kg3000N2.20
S37DRE71S419.890.25KW65.0rpm32N.m17kg2870N1.65
S37DRE71S418.240.25KW71.0rpm29N.m17kg2820N1.80
S37DRE71S415.530.25KW84.0rpm25N.m17kg2710N2.00
S37DRE71S413.390.25KW97.0rpm22N.m17kg2620N2.30
S37DRE71S412.480.25KW104rpm20N.m17kg2570N2.40
S37DRE71S410.910.25KW119rpm18N.m17kg2480N2.70
S37DRE71S410.230.25KW127rpm17N.m17kg2440N2.80
S37DRE71S49.020.25KW144rpm15N.m17kg2360N3.10
S37DRE71S48.000.25KW162rpm13N.m17kg2280N3.40
S37DRE71S46.800.25KW191rpm11N.m17kg2180N3.80

S37DVE71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
S37DVE71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
S37DVE71S486.360.25KW15.0rpm96N.m17kg3000N0.90
S37DVE71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
S37DVE71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
S37DVE71S463.330.25KW21.0rpm73N.m17kg3000N1.10
S37DVE71S455.930.25KW23.0rpm78N.m17kg3000N1.05
S37DVE71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
S37DVE71S443.680.25KW30.0rpm62N.m17kg3000N1.30
S37DVE71S437.660.25KW35.0rpm54N.m17kg3000N1.45
S37DVE71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
S37DVE71S430.680.25KW42.0rpm45N.m17kg3000N1.70
S37DVE71S428.760.25KW45.0rpm42N.m17kg3000N1.80
S37DVE71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
S37DVE71S422.500.25KW58.0rpm33N.m17kg3000N2.20
S37DVE71S419.890.25KW65.0rpm32N.m17kg2870N1.65
S37DVE71S418.240.25KW71.0rpm29N.m17kg2820N1.80
S37DVE71S415.530.25KW84.0rpm25N.m17kg2710N2.00
S37DVE71S413.390.25KW97.0rpm22N.m17kg2620N2.30
S37DVE71S412.480.25KW104rpm20N.m17kg2570N2.40
S37DVE71S410.910.25KW119rpm18N.m17kg2480N2.70
S37DVE71S410.230.25KW127rpm17N.m17kg2440N2.80
S37DVE71S49.020.25KW144rpm15N.m17kg2360N3.10
S37DVE71S48.000.25KW162rpm13N.m17kg2280N3.40
S37DVE71S46.800.25KW191rpm11N.m17kg2180N3.80

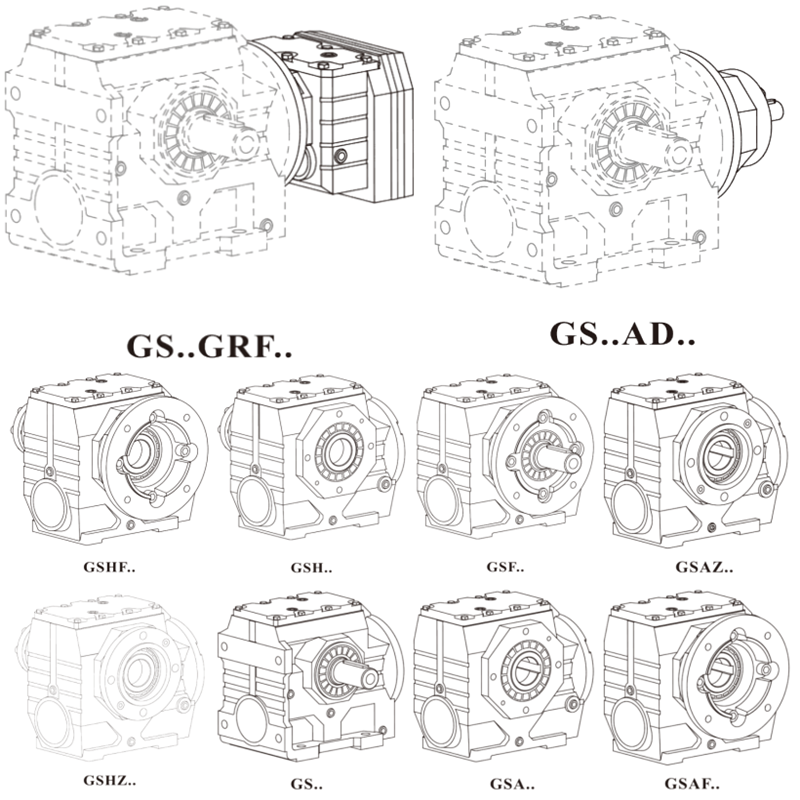

S37DRE71S4齒輪減速機馬達類型：

S..DR..底腳安裝斜齒輪自鎖減速機

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機

SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機

SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機

SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

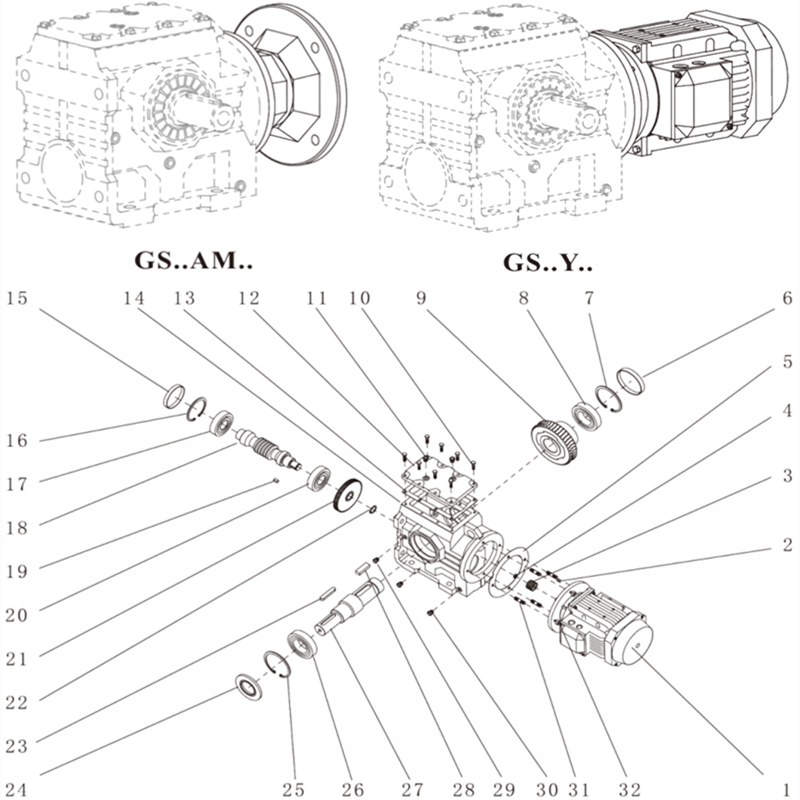

S37DRE71S4齒輪減速機馬達安裝尺寸圖紙



S37DRE71S4齒輪減速機馬達生產工廠展示：看廠請提前三天預約

S系列減速機應用案例展示：

關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家

S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機

S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   輸出轉數211轉減速機電機 S37DRE71S4 S37DVE71S4 211轉一分鐘減速電機 每分鐘轉211轉齒輪減速箱馬達 211轉/分鐘減速器 211轉電機減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
S37DRE71S4減速機樣本 點擊下載
S37DRE71S4減速機三維圖紙 點擊下載
