S67DRN100L4詳細信息
S67DRN100L4
訂購熱線：13360667204
關鍵詞：承載31噸負載電機減速機_S67DRN100L4_S67DRN100LC4
S67DRN100L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S67DRN100L4 | 34.80 | 3KW | 42.0rpm | 570N.m | 61kg | 6350N | 0.85 |
| S67DRN100L4 | 29.63 | 3KW | 49.0rpm | 490N.m | 61kg | 6340N | 1.00 |
| S67DRN100L4 | 26.93 | 3KW | 54.0rpm | 445N.m | 61kg | 6320N | 1.05 |
| S67DRN100L4 | 23.33 | 3KW | 62.0rpm | 390N.m | 61kg | 6250N | 1.25 |
| S67DRN100L4 | 20.37 | 3KW | 71.0rpm | 360N.m | 61kg | 5240N | 0.95 |
| S67DRN100L4 | 17.28 | 3KW | 84.0rpm | 305N.m | 61kg | 5250N | 1.10 |
| S67DRN100L4 | 15.60 | 3KW | 93.0rpm | 275N.m | 61kg | 5230N | 1.20 |
| S67DRN100L4 | 13.73 | 3KW | 106rpm | 245N.m | 61kg | 5190N | 1.40 |
| S67DRN100L4 | 12.96 | 3KW | 112rpm | 230N.m | 61kg | 5170N | 1.45 |
| S67DRN100L4 | 11.03 | 3KW | 132rpm | 199N.m | 61kg | 5080N | 1.70 |
| S67DRN100L4 | 10.03 | 3KW | 145rpm | 181N.m | 61kg | 5020N | 1.90 |
| S67DRN100L4 | 8.69 | 3KW | 167rpm | 157N.m | 61kg | 4910N | 2.10 |
| S67DRN100L4 | 7.56 | 3KW | 192rpm | 137N.m | 61kg | 4800N | 2.20 |
S67DRN100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| S67DRN100LC4 | 34.80 | 3KW | 42.0rpm | 570N.m | 61kg | 6350N | 0.85 |
| S67DRN100LC4 | 29.63 | 3KW | 49.0rpm | 490N.m | 61kg | 6340N | 1.00 |
| S67DRN100LC4 | 26.93 | 3KW | 54.0rpm | 445N.m | 61kg | 6320N | 1.05 |
| S67DRN100LC4 | 23.33 | 3KW | 62.0rpm | 390N.m | 61kg | 6250N | 1.25 |
| S67DRN100LC4 | 20.37 | 3KW | 71.0rpm | 360N.m | 61kg | 5240N | 0.95 |
| S67DRN100LC4 | 17.28 | 3KW | 84.0rpm | 305N.m | 61kg | 5250N | 1.10 |
| S67DRN100LC4 | 15.60 | 3KW | 93.0rpm | 275N.m | 61kg | 5230N | 1.20 |
| S67DRN100LC4 | 13.73 | 3KW | 106rpm | 245N.m | 61kg | 5190N | 1.40 |
| S67DRN100LC4 | 12.96 | 3KW | 112rpm | 230N.m | 61kg | 5170N | 1.45 |
| S67DRN100LC4 | 11.03 | 3KW | 132rpm | 199N.m | 61kg | 5080N | 1.70 |
| S67DRN100LC4 | 10.03 | 3KW | 145rpm | 181N.m | 61kg | 5020N | 1.90 |
| S67DRN100LC4 | 8.69 | 3KW | 167rpm | 157N.m | 61kg | 4910N | 2.10 |
| S67DRN100LC4 | 7.56 | 3KW | 192rpm | 137N.m | 61kg | 4800N | 2.20 |

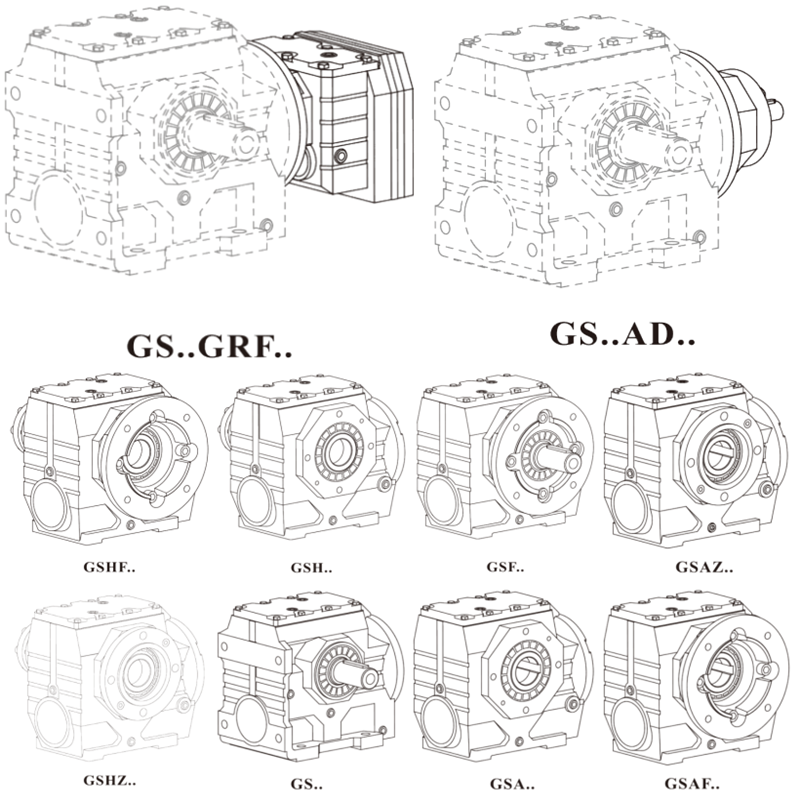

S67DRN100L4減速器電動機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
S67DRN100L4減速器電動機安裝尺寸圖紙
S67DRN100L4減速器電動機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
S系列減速機應用案例展示：
關鍵詞:S系列減速機_GS蝸輪蝸桿減速機電機一套_具有自鎖功能減速器與電機_有自鎖功能減速機_S蝸輪蝸桿減速機_S系列減速機生產廠家
S系列減速機型號：S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97減速機
S系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 承載31噸負載電機減速機 S67DRN100L4 S67DRN100LC4
